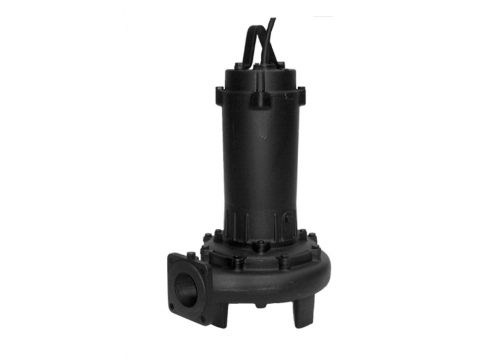

MODEL: DF

FEATURES:

• Non-clog operation with “cutting” action.

– Non-clog semi-open impeller and “cutting” action prevents clogging by fibrous matter. Models up to 3.7 kW

have a chrysalis shaped suction port, while larger models have a radially grooved suction cover.

• Robust construction.

– Rugged cast iron construction, all fasteners of stainless steel and a 4 pole motor.

• Double mechanical seal in oil chamber.

– An oil lubricated double mechanical seal with lower faces of hard silicon carbide provides strong and reliable

shaft sealing.

• In built motor protection.

– Quick acting dual response overloads provides protection against overload, lock or open phase.

• Automatic operation.

– All models up to 3.7 kW are available as automatic (A’ type) pumps with inbuilt controls and float switches.

– No need for separate control panels, simply connect to power source.

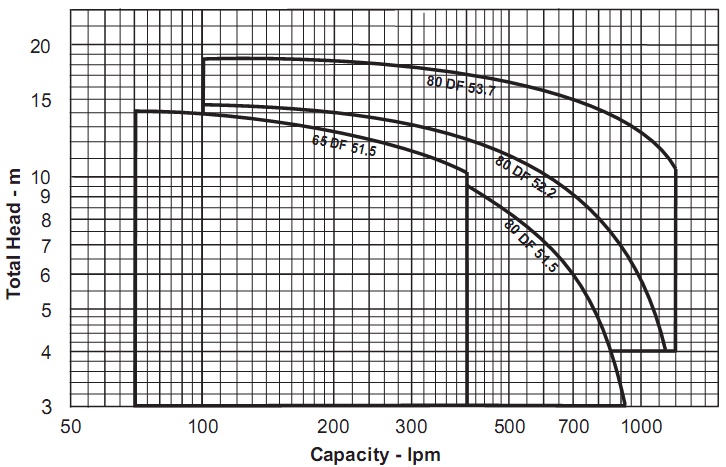

SELECTION CHART:
