Model: Gate Pump

Model: Gate Pump

Xuất xứ: Vietnam

APPLICATIONS


Product details


PRODUCT OVERVIEW

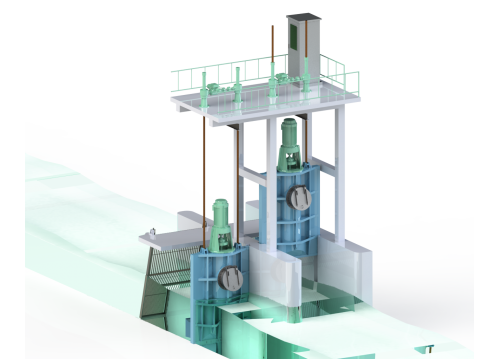

The Gate Pump is a fully integrated flood control system that combines a drainage pump and flood gate into a single compact unit. It offers a space-saving and cost-effective solution - ideal for infrastructure projects where construction and installation space is limited.

FEATURES
  • Compact Design: Minimizes installation space
  • Enhanced Suction Bell : Prevents vortex formation and allows operation at low water level

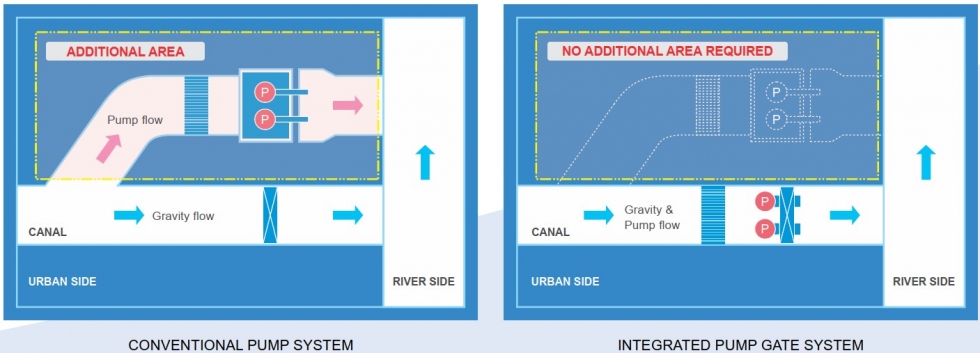

  • Integrated Construction: Unlike conventional system, the Gate Pump System requires no separate chambers for the gate and pump - simplifying design, making operation easier and significantly reducing construction cost.

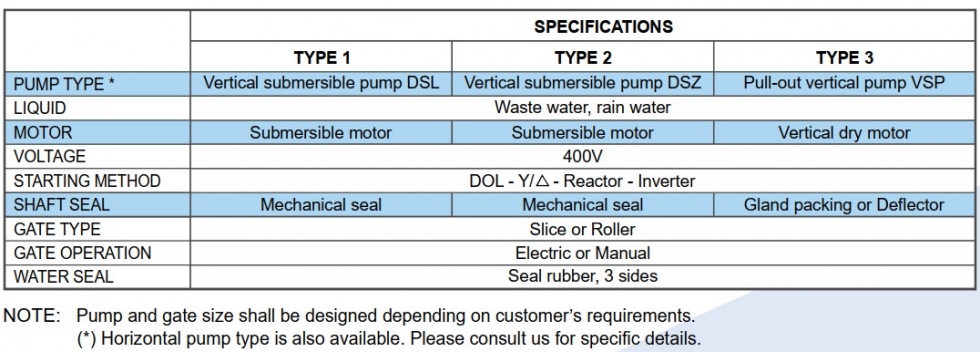

SPECIFICATIONS

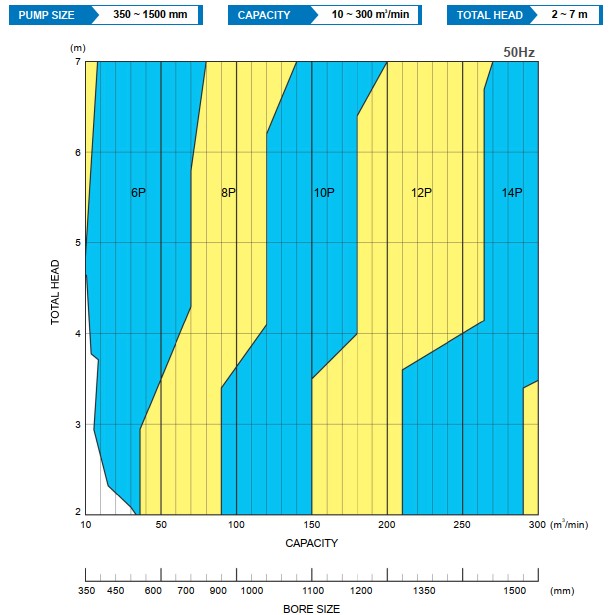

PUMP SELECTION CHART


Note:
- For detail selection, please contact our factory
- Pump rating not in the chart is also available.

- Selected bore/speed may differ depending on actual service conditions
